A heater that stays cold while the temperature gauge looks fine is frustrating. It usually means coolant is not reaching the heater core, hot air is not being directed through it, or the system is being fooled by a sensor or control fault.
Here is a clear path to the most likely causes and the simple checks that separate them.
What “Normal Gauge, No Heat” Usually Means
Your dash gauge reports engine temperature at the sensor near the thermostat, not the temperature inside the heater core. If coolant is low, air can collect in the heater circuit and block flow there while the engine itself still reaches normal temperature. Another common pattern is a stuck HVAC blend door that never routes cabin air across the hot core.
Less often, a partially restricted heater core flows just enough to warm the firewall but not enough to heat the cabin at idle.
Coolant Level and Air Pockets: Quick First Checks
- Only check when the engine is completely cool. The reservoir should sit between the marks; if it is low, top up with the correct coolant mix.
- Squeeze the upper radiator hose gently. If it collapses or feels paper-thin, a failing cap or internal hose liner may be pulling air into the system.
- Watch for small, chalky trails at hose clamps, radiator seams, or the water pump; tiny leaks allow air in and heat out.
- After topping up, if heat returns for a day or two and then fades, a slow leak or air ingestion issue is likely.
Thermostat, Blend Doors, and Heater Core
A healthy thermostat puts the engine into its normal temperature window and stabilizes flow. If it is stuck open, cabin heat may be weak at highway speeds on cold days, even though the gauge looks near normal.
The blend door is the flap inside the HVAC box that chooses cool or hot air. When the actuator fails or the door jams, the system can be locked on “cool” no matter how warm the coolant is.

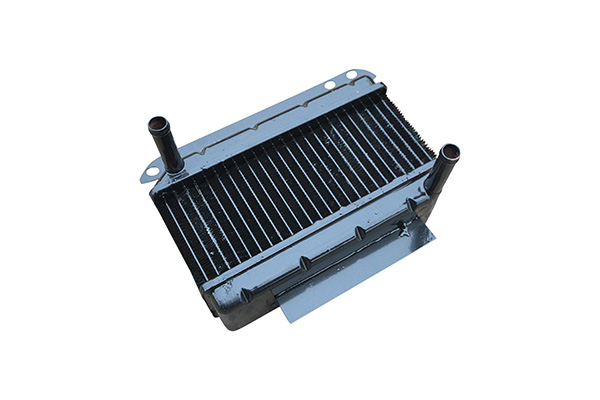

The heater core is a small radiator inside the dash. Debris or silicate buildup can partially block it, leading to lukewarm air at cruise and cold air at idle. Feeling the inlet and outlet hoses (carefully, with the engine warm) can hint at restriction: a large temperature difference often points to a plugged core.
Modern Clues from the HVAC Control Module
Late-model vehicles monitor door positions and sometimes store HVAC fault codes. A failed recalibration after a dead battery, a stripped plastic gear in an actuator, or a faulty interior temp sensor can all mimic a cooling problem. An HVAC self-test or scan can reveal a door that stops short of full hot or a sensor that reads the cabin warmer than it is, keeping the system from commanding heat.
When the A/C System Touches Your Heat
The A/C and heat share the same air box. If the A/C is left on in “auto,” the system may dehumidify air and blend in cool flow to reach a target temperature, which can feel like no heat on short trips. A stuck expansion valve or an evaporator temperature sensor reading too low can also cause the controller to bias away from heat. Try switching off A/C and recirculate, then choose full hot and floor vents to remove software blending from the equation during testing.
DIY Road Tests to Narrow It Down
From a cold start, select full hot. Idle for five minutes, then drive gently. If heat improves above 30 mph but fades at stoplights, suspect low coolant, air in the core, or a restricted core.
Park safely, set full hot, and switch between floor and defrost. Airflow should shift strongly. Weak or unchanged airflow direction hints at a door or actuator issue.
With the engine at temperature, feel the two small heater hoses at the firewall (use caution). Both should be hot; one much cooler than the other suggests poor flow through the core.
If heat is fine in mild weather but fails on the coldest mornings, a thermostat running too cool may be the culprit.
How Professional Testing Saves Guesswork
A proper diagnosis verifies coolant strength and level, pressure-tests the system for tiny leaks, and checks the radiator cap’s hold and vacuum return functions. Our technicians compare heater inlet and outlet temperatures with an infrared thermometer, command blend doors with a scan tool, and bleed air using a vacuum fill tool so the core fills completely.
We pressure check the heater circuit and, if needed, flow-test the core before recommending a flush or replacement. That approach avoids replacing a thermostat when the real problem is a blend door, or flushing a core when the cap is the only fault.
Habits That Keep Cabin Heat Consistent
Use the exact coolant type and change it on schedule so deposits do not clog the small heater passages. Replace a weak radiator cap at the first sign of seal cracking. Keep the front of the radiator and condenser clean to maintain airflow, which stabilizes temperatures at idle. If a battery was recently replaced, consider an HVAC recalibration so door positions and targets are learned correctly.
